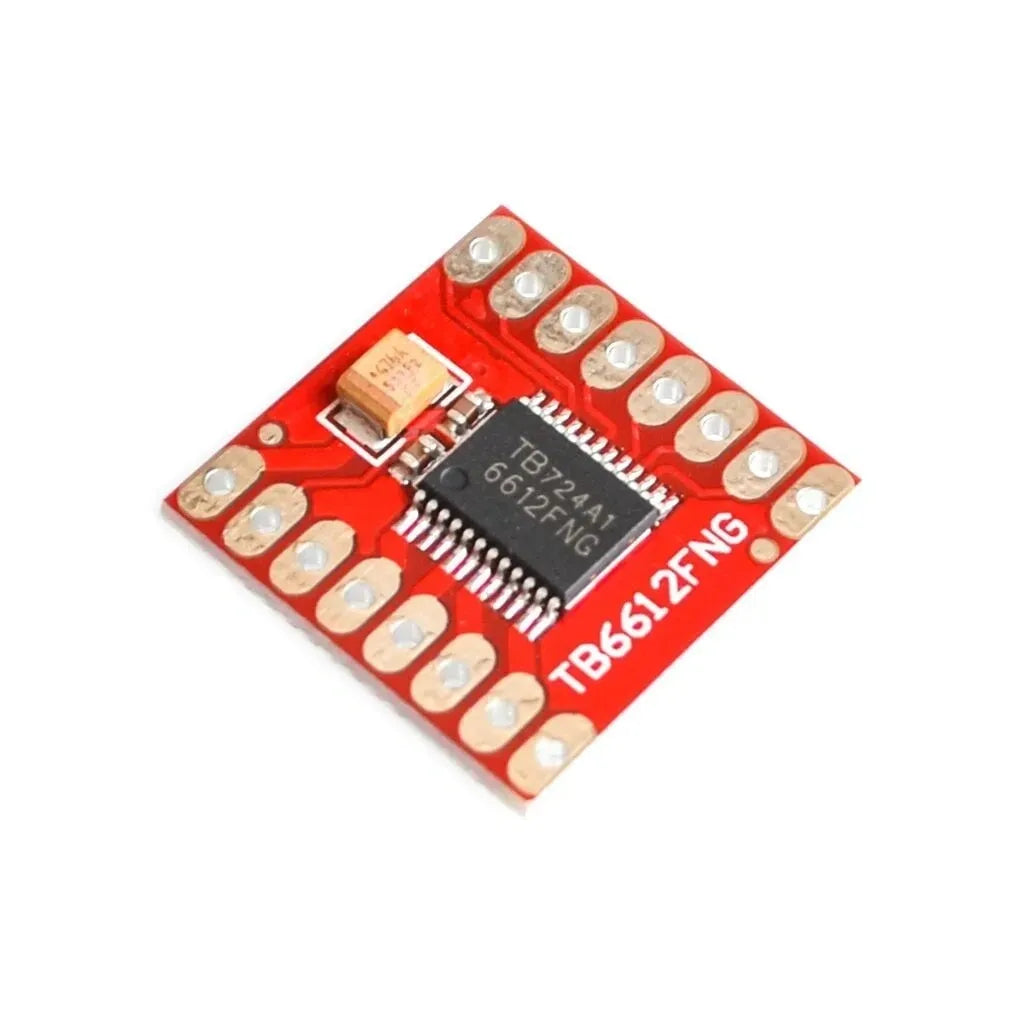

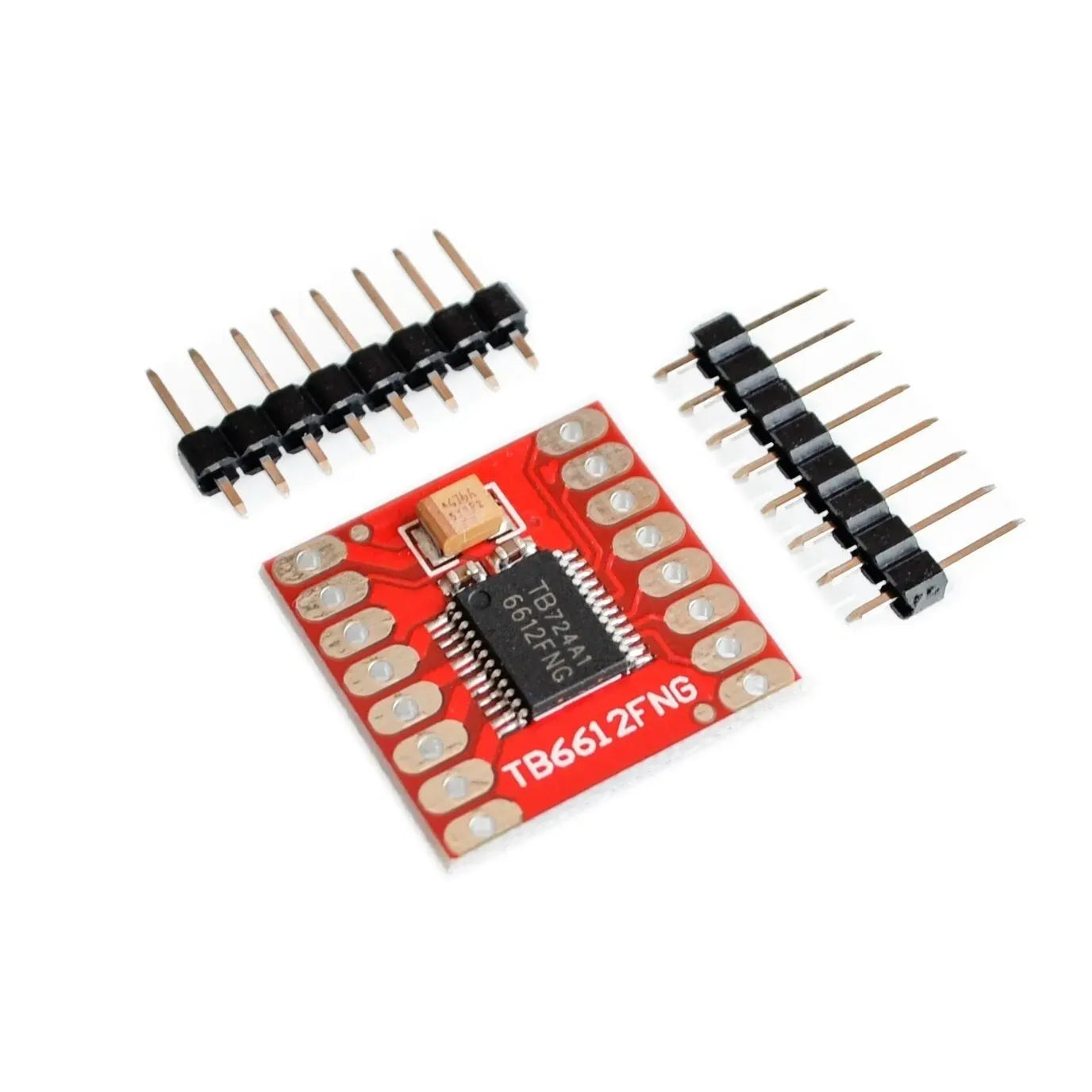

TB6612FNG Motor Driver

This is a compact motor driver board based on the Toshiba TB6612FNG chip, designed to control DC motors or stepper motors efficiently in robotics and Arduino projects. It's beginner-friendly for first-year engineering students, with simple pin connections for direction, speed, and braking.

Key Specifications

• Chip: Toshiba TB6612FNG—low-voltage CMOS driver with low heat generation and high efficiency.
• Motor support: Drives two DC motors (up to 1.2A continuous per channel) or one stepper motor.
• Voltage range: Logic from 2.7–5.5V (works with Arduino 3.3V or 5V); motor power up to 15V.
• Control pins: PWM speed input, direction (AIN/BIN), brake, and standby—easy hookup with jumpers.
• Protection: Built-in overcurrent and thermal shutdown for safe operation.
• Board size: Small footprint (typically ~25 × 20 mm) with labeled pins and mounting holes.
• Typical use: Robot chassis drive, small vehicle prototypes, or lab motor experiments.

Cross-sell: Need a microcontroller to pair with it? Check our Arduino boards in stock!

Note: Product size and dimensions may vary slightly.
