HC-05 Bluetooth Module (with AT Button)
HC-05 Bluetooth Module (with AT Button)
Regular price
$5.00 CAD
Regular price
Sale price
$5.00 CAD
Unit price
/
per
Couldn't load pickup availability

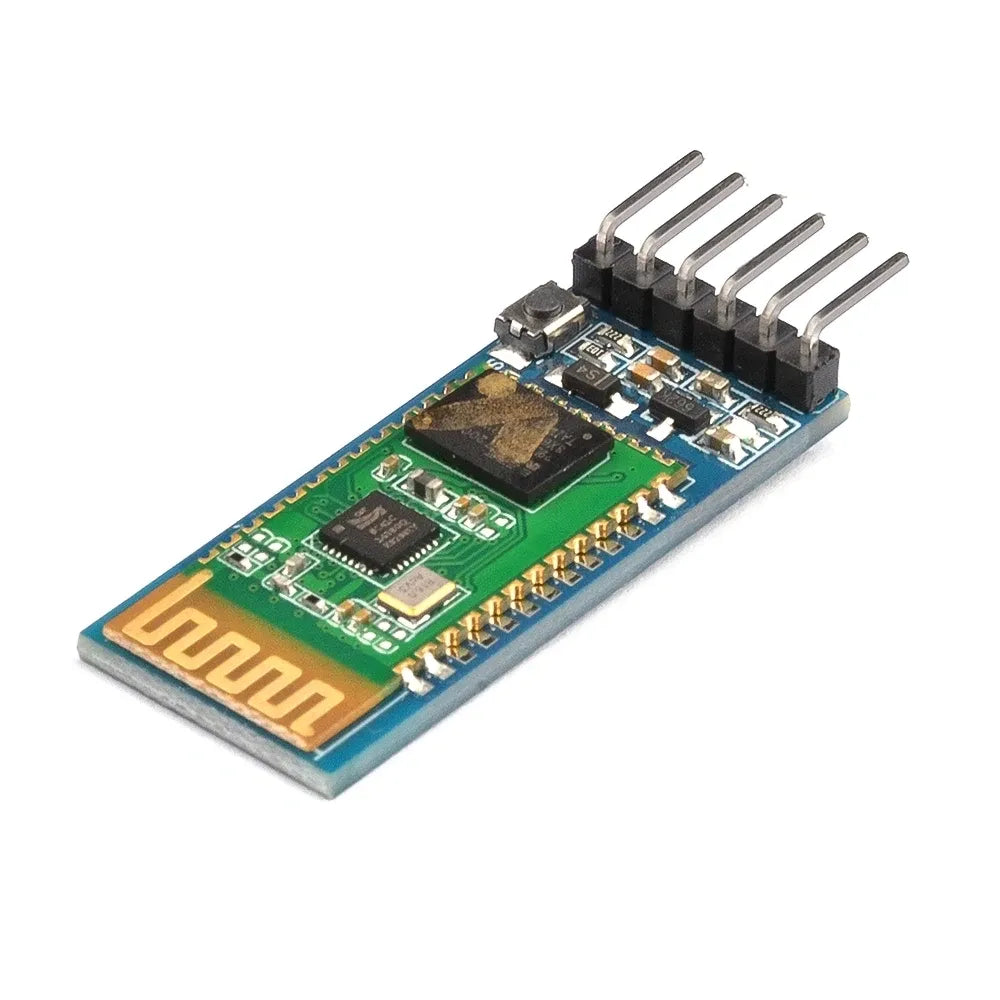

HC-05 is a Bluetooth 2.0+EDR serial transceiver module (CSR BC417 chipset)—acts as UART pipe (3.3V logic, 5V tolerant) for wireless Arduino/PC links up to 10m (Class 2). Great for first-year engineering students' remote control or sensor streaming projects.
Default slave; AT mode (KEY high, 38400 baud) for config (name/PIN/role/baud 1200–1382400); LED states (fast flash unpaired, slow AT, double paired).
Pins & Power

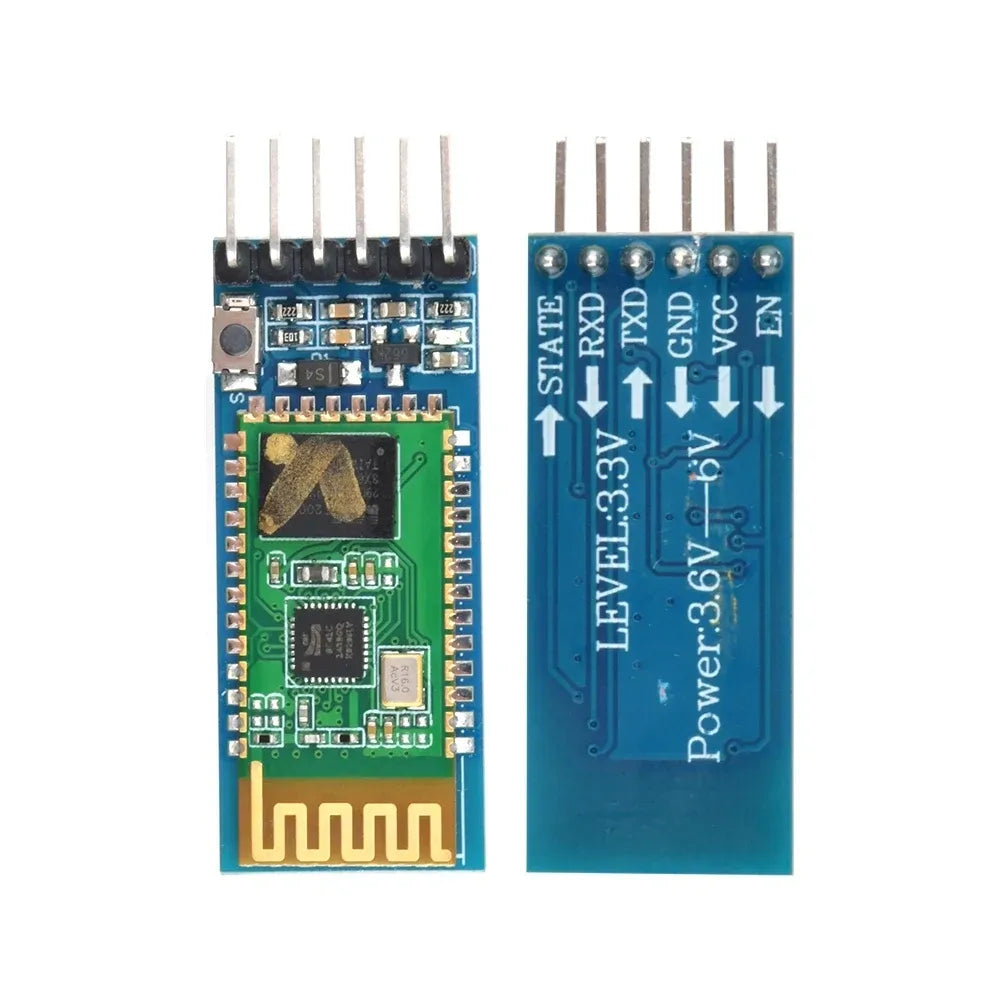

- VCC 3.6–6V (LDO 3.3V, <30mA unpaired/~10mA paired); GND/TX/RX/STATE/KEY.
- Format: 8N1; full-duplex post-pair.
Compatible Products:
- Arduino Nano for creating compact Bluetooth-controlled projects and wireless sensor systems.Click Here
- TB6612FNG Motor Driver: For controlling DC motors wirelessly through an Arduino and HC-05 module. Click Here
- Arduino Motor Driver Shield for building Bluetooth-controlled robots when paired with an Arduino Uno. Click Here
Note: Product size and dimensions may vary (~27x13mm); 5V supply recommended.
Disclaimer: The images shown are for illustration purposes only and may not be an exact match.
