uOttawa Makerstore
Arduino Nano
Arduino Nano
Regular price
$8.00 CAD
Regular price
Sale price
$8.00 CAD
Unit price
/
per
Couldn't load pickup availability

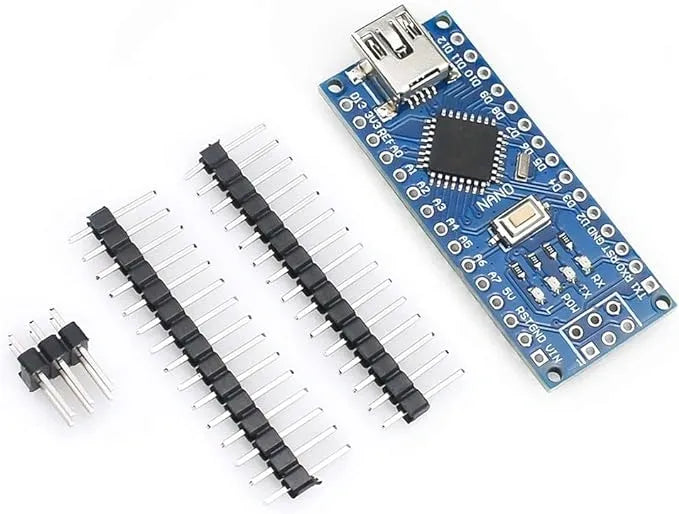

Arduino Nano 3.0 (CH340)
The Arduino Nano is a tiny, breadboard-friendly microcontroller board based on the ATmega328P chip, perfect for embedding in compact projects like wearables or robots. It's great for first-year engineering students who need Arduino power without the full Uno size.
Board Specifications
- Microcontroller: ATmega328P at 16 MHz with 32 KB flash, 2 KB SRAM, 1 KB EEPROM.
- USB: CH340 serial-to-USB chip (Micro USB connector)—inexpensive and widely supported.
- Power: 5V via USB or VIN (7–12V); 3.3V output pin available.
- I/O: 14 digital pins (6 PWM), 8 analog inputs, UART/I2C/SPI—same pinout as Uno.
- Size: Super compact 45 × 18 mm with 30-pin headers for direct breadboard use.
- Typical projects: Sensor nodes, motor controllers, or portable data loggers.
Compatible Products :
- Breadboard: For prototyping circuits with sensors, LEDs, and other electronic components. Click Here
- 40-Pin Male Headers: For soldering onto the Arduino Nano so it can connect to a breadboard.Click Here
- USB A to Mini-B Cable – For programming and powering the Arduino Nano through a computer (for versions with a Mini-B port).Click Here
Note: Product size and dimensions may vary slightly.
Disclaimer: The images shown are for illustration purposes only and may not be an exact match. Product size and color can vary.
